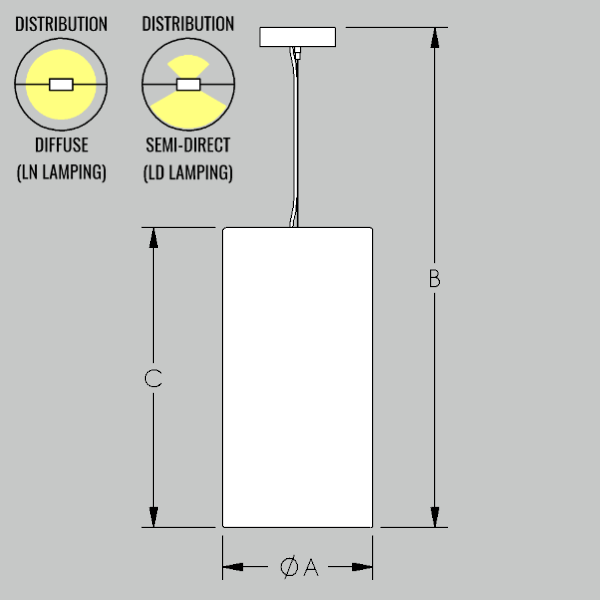

12" A x 72" B x 12" C
Weight: 8 lbs
P4075 | Array 12

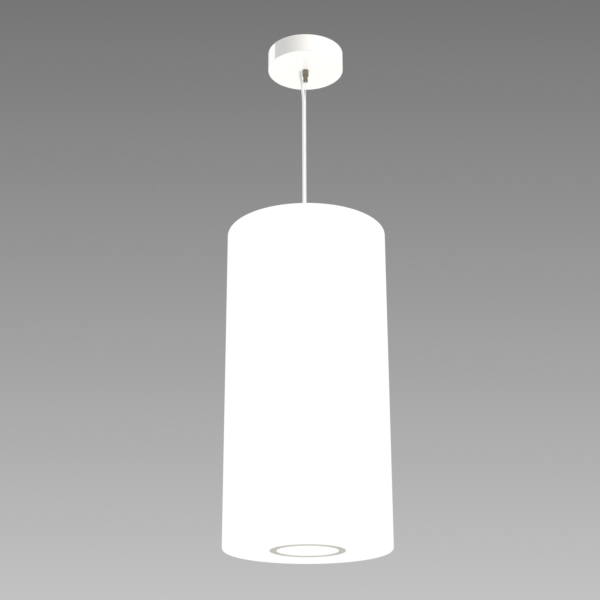

Clean lines and thoughtful details define the Array cylinder pendant, from its Soft Edge diffuser to its exclusive LumaLine™ suspension system. The 12" diameter makes a bold architectural statement in grand spaces, bringing dramatic scale to large cluster installations.
- 12 inch diameter white acrylic cylinder
- LumaLine™ integrated suspension cable and power cord — exclusively from Camman
- Soft Edge diffuser
- Balanced Brightness — consistent luminance across all diameters

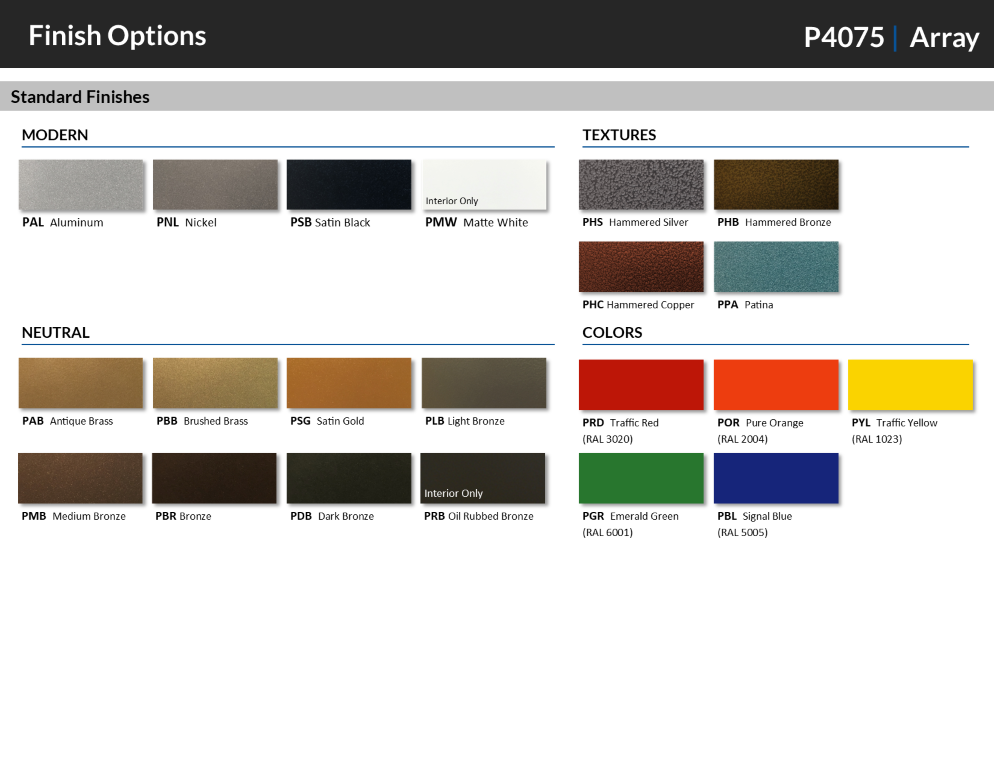

- Distinctive bottom end cap options in multiple styles, finishes, and materials
P4075-12
| LN | LED: Nominal 20W, 2220 Delivered Lumens |
| LND | LED + Downlight: Nominal 40W, 5220 Delivered Lumens |
| LH | LED: Nominal 25W, 2645 Delivered Lumens |
| LHD | LED + Downlight: Nominal 45W, 5645 Delivered Lumens |
P4075-24
12" A x 84" B x 24" C
Weight: 11 lbs
| LN | LED: Nominal 35W, 4440 Delivered Lumens |
| LND | LED + Downlight: Nominal 60W, 7440 Delivered Lumens |
| LH | LED: Nominal 45W, 5290 Delivered Lumens |
| LHD | LED + Downlight: Nominal 65W, 8290 Delivered Lumens |
P4075-36
12" A x 96" B x 36" C
Weight: 14 lbs
| LN | LED: Nominal 55W, 6660 Delivered Lumens |
| LND | LED + Downlight: Nominal 75W, 9660 Delivered Lumens |
| LH | LED: Nominal 65W, 7935 Delivered Lumens |
| LHD | LED + Downlight: Nominal 85W, 10935 Delivered Lumens |
P4075-48
12" A x 108" B x 48" C
Weight: 16 lbs
| LN | LED: Nominal 70W, 8880 Delivered Lumens |
| LND | LED + Downlight: Nominal 95W, 11880 Delivered Lumens |
| LH | LED: Nominal 85W, 10580 Delivered Lumens |
| LHD | LED + Downlight: Nominal 105W, 13580 Delivered Lumens |
P4075-60
12" A x 120" B x 60" C
Weight: 19 lbs
| LN | LED: Nominal 90W, 11100 Delivered Lumens |
| LND | LED + Downlight: Nominal 110W, 14100 Delivered Lumens |
| LH | LED: Nominal 105W, 13225 Delivered Lumens |
| LHD | LED + Downlight: Nominal 125W, 16225 Delivered Lumens |
P4075-72
12" A x 132" B x 72" C
Weight: 22 lbs
| LN | LED: Nominal 105W, 13320 Delivered Lumens |
| LND | LED + Downlight: Nominal 130W, 16320 Delivered Lumens |
| LH | LED: Nominal 125W, 15870 Delivered Lumens |
| LHD | LED + Downlight: Nominal 145W, 18870 Delivered Lumens |
P4075-96
12" A x 156" B x 96" C
Weight: 27 lbs
| LN | LED: Nominal 140W, 17760 Delivered Lumens |
| LND | LED + Downlight: Nominal 160W, 20760 Delivered Lumens |
| LH | LED: Nominal 165W, 21160 Delivered Lumens |
| LHD | LED + Downlight: Nominal 185W, 24160 Delivered Lumens |
Plus Customizations:
Bigger or Smaller: Can be made to most custom lengths, from 12" to 96".
Contact Camman or your local Agent for additional information.
Camman-exclusive LumaLine™ — an integrated suspension cable and power cord in one clean line. No loose cord. No zip ties. Just a sleek, neat drop from ceiling to fixture.
Additional Notes:
Mounting is to a 4 inch octagonal junction box.
