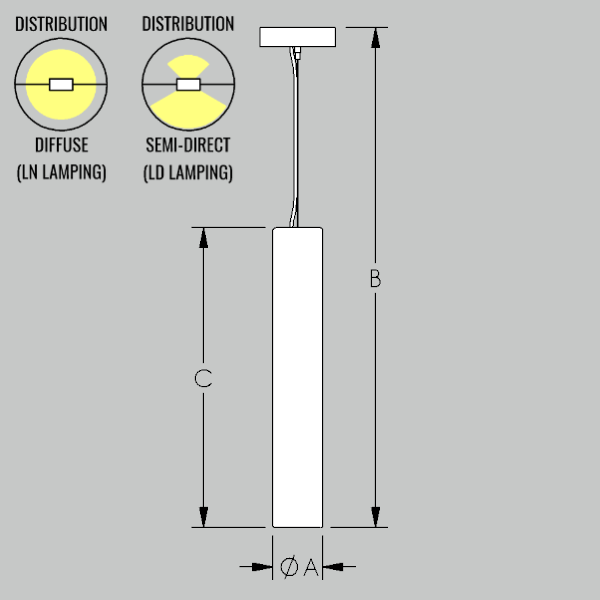

4" A x 72" B x 12" C
Weight: 4 lbs
P4031 | Array 4

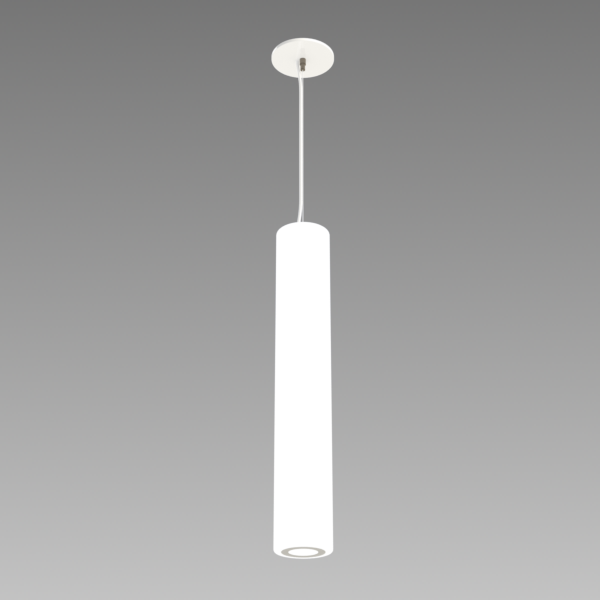

Clean lines and thoughtful details define the Array cylinder pendant, from its Soft Edge diffuser to its exclusive LumaLine™ suspension system. The 4" diameter is an elegant choice for intimate spaces, and pairs beautifully with larger Array diameters in clustered installations.
- 4 inch diameter white acrylic cylinder
- LumaLine™ integrated suspension cable and power cord — exclusively from Camman
- Soft Edge diffuser
- Balanced Brightness — consistent luminance across all diameters

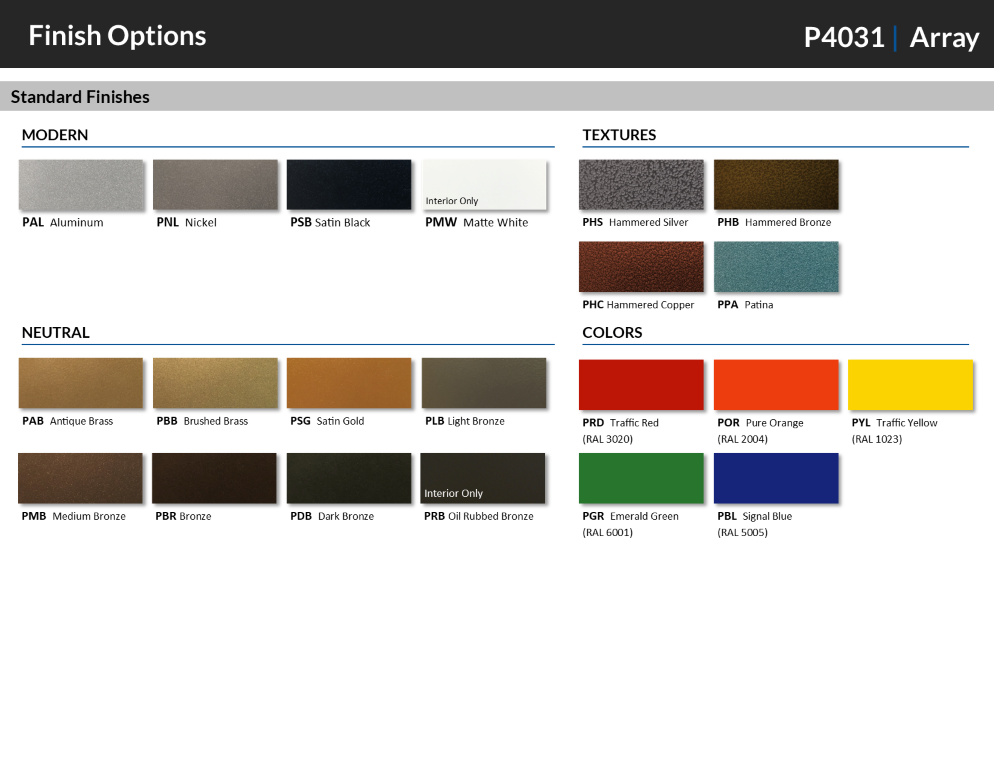

- Distinctive bottom end cap options in multiple styles, finishes, and materials
P4031-12
| LN | LED: Nominal 10W, 740 Delivered Lumens |
| LND | LED + Downlight: Nominal 15W, 1940 Delivered Lumens |
| LH | LED: Nominal 10W, 1165 Delivered Lumens |
| LHD | LED + Downlight: Nominal 20W, 2365 Delivered Lumens |
P4031-24
4" A x 84" B x 24" C
Weight: 5 lbs
| LN | LED: Nominal 15W, 1480 Delivered Lumens |
| LND | LED + Downlight: Nominal 25W, 2680 Delivered Lumens |
| LH | LED: Nominal 20W, 2330 Delivered Lumens |
| LHD | LED + Downlight: Nominal 30W, 3530 Delivered Lumens |
P4031-36
4" A x 96" B x 36" C
Weight: 6 lbs
| LN | LED: Nominal 20W, 2220 Delivered Lumens |
| LND | LED + Downlight: Nominal 30W, 3420 Delivered Lumens |
| LH | LED: Nominal 30W, 3495 Delivered Lumens |
| LHD | LED + Downlight: Nominal 40W, 4695 Delivered Lumens |
P4031-48
4" A x 108" B x 48" C
Weight: 7 lbs
| LN | LED: Nominal 30W, 2960 Delivered Lumens |
| LND | LED + Downlight: Nominal 40W, 4160 Delivered Lumens |
| LH | LED: Nominal 40W, 4660 Delivered Lumens |
| LHD | LED + Downlight: Nominal 50W, 5860 Delivered Lumens |
P4031-60
4" A x 120" B x 60" C
Weight: 8 lbs
| LN | LED: Nominal 35W, 3700 Delivered Lumens |
| LND | LED + Downlight: Nominal 45W, 4900 Delivered Lumens |
| LH | LED: Nominal 50W, 5825 Delivered Lumens |
| LHD | LED + Downlight: Nominal 60W, 7025 Delivered Lumens |
P4031-72
4" A x 132" B x 72" C
Weight: 9 lbs
| LN | LED: Nominal 45W, 4440 Delivered Lumens |
| LND | LED + Downlight: Nominal 50W, 5640 Delivered Lumens |
| LH | LED: Nominal 60W, 6990 Delivered Lumens |
| LHD | LED + Downlight: Nominal 70W, 8190 Delivered Lumens |
P4031-96
4" A x 156" B x 96" C
Weight: 10 lbs
| LN | LED: Nominal 55W, 5920 Delivered Lumens |
| LND | LED + Downlight: Nominal 65W, 7120 Delivered Lumens |
| LH | LED: Nominal 80W, 9320 Delivered Lumens |
| LHD | LED + Downlight: Nominal 90W, 10520 Delivered Lumens |
Plus Customizations:
Bigger or Smaller: Can be made to most custom lengths, from 12" to 96".
Contact Camman or your local Agent for additional information.
Camman-exclusive LumaLine™ — an integrated suspension cable and power cord in one clean line. No loose cord. No zip ties. Just a sleek, neat drop from ceiling to fixture.
Additional Notes:
Mounting is to a 4 inch octagonal junction box.
