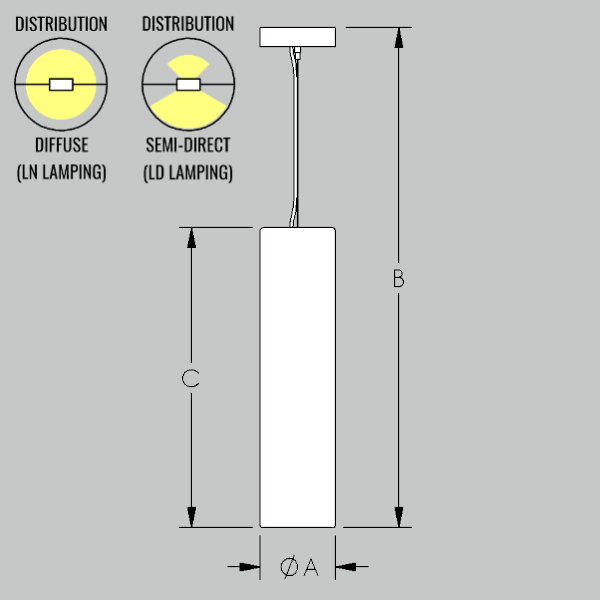

6" A x 72" B x 12" C
Weight: 5 lbs
P4042 | Array 6

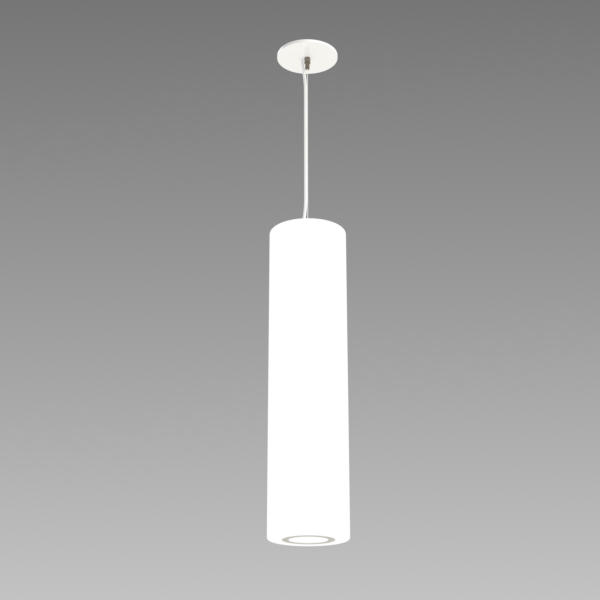

Clean lines and thoughtful details define the Array cylinder pendant, from its Soft Edge diffuser to its exclusive LumaLine™ suspension system. The 6" diameter strikes a versatile balance — at home alone or mixed with other Array sizes for a dynamic, layered effect.
- 6 inch diameter white acrylic cylinder
- LumaLine™ integrated suspension cable and power cord — exclusively from Camman
- Soft Edge diffuser
- Balanced Brightness — consistent luminance across all diameters

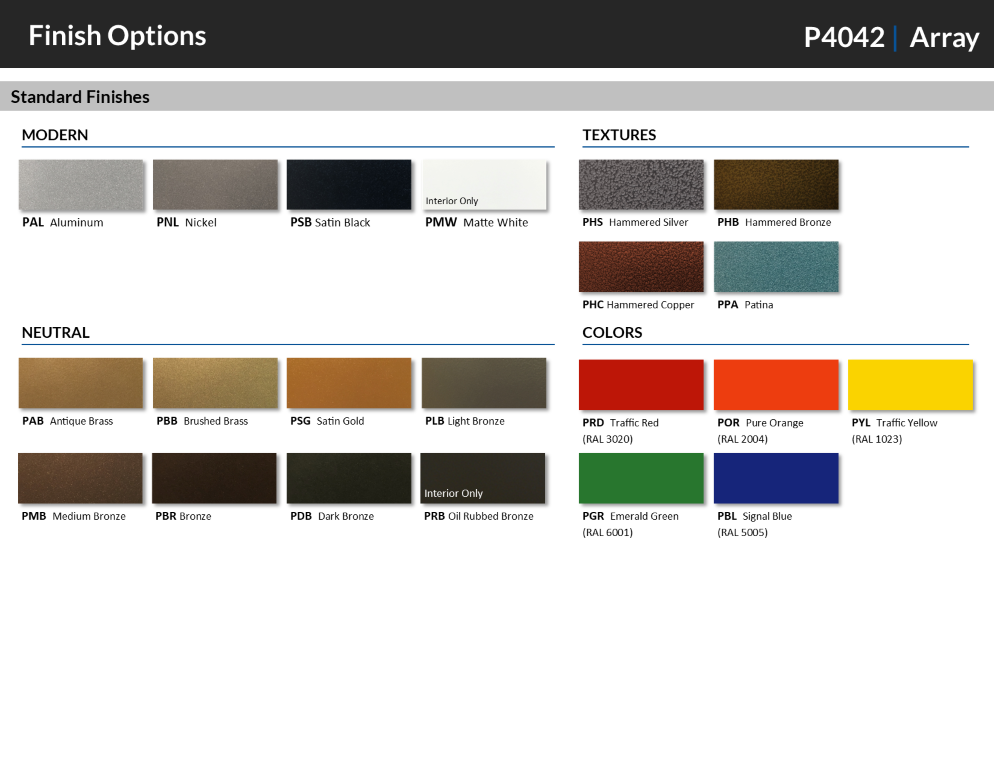

- Distinctive bottom end cap options in multiple styles, finishes, and materials
P4042-12
| LN | LED: Nominal 10W, 1110 Delivered Lumens |
| LND | LED + Downlight: Nominal 20W, 2310 Delivered Lumens |
| LH | LED: Nominal 15W, 1535 Delivered Lumens |
| LHD | LED + Downlight: Nominal 25W, 2735 Delivered Lumens |
P4042-24
6" A x 84" B x 24" C
Weight: 6 lbs
| LN | LED: Nominal 20W, 2220 Delivered Lumens |
| LND | LED + Downlight: Nominal 30W, 3420 Delivered Lumens |
| LH | LED: Nominal 25W, 3070 Delivered Lumens |
| LHD | LED + Downlight: Nominal 35W, 4270 Delivered Lumens |
P4042-36
6" A x 96" B x 36" C
Weight: 7 lbs
| LN | LED: Nominal 30W, 3330 Delivered Lumens |
| LND | LED + Downlight: Nominal 40W, 4530 Delivered Lumens |
| LH | LED: Nominal 40W, 4605 Delivered Lumens |
| LHD | LED + Downlight: Nominal 45W, 5805 Delivered Lumens |
P4042-48
6" A x 108" B x 48" C
Weight: 9 lbs
| LN | LED: Nominal 40W, 4440 Delivered Lumens |
| LND | LED + Downlight: Nominal 45W, 5640 Delivered Lumens |
| LH | LED: Nominal 50W, 6140 Delivered Lumens |
| LHD | LED + Downlight: Nominal 60W, 7340 Delivered Lumens |
P4042-60
6" A x 120" B x 60" C
Weight: 10 lbs
| LN | LED: Nominal 50W, 5550 Delivered Lumens |
| LND | LED + Downlight: Nominal 55W, 6750 Delivered Lumens |
| LH | LED: Nominal 65W, 7675 Delivered Lumens |
| LHD | LED + Downlight: Nominal 70W, 8875 Delivered Lumens |
P4042-72
6" A x 132" B x 72" C
Weight: 11 lbs
| LN | LED: Nominal 55W, 6660 Delivered Lumens |
| LND | LED + Downlight: Nominal 65W, 7860 Delivered Lumens |
| LH | LED: Nominal 75W, 9210 Delivered Lumens |
| LHD | LED + Downlight: Nominal 85W, 10410 Delivered Lumens |
P4042-96
6" A x 156" B x 96" C
Weight: 14 lbs
| LN | LED: Nominal 75W, 8880 Delivered Lumens |
| LND | LED + Downlight: Nominal 85W, 10080 Delivered Lumens |
| LH | LED: Nominal 100W, 12280 Delivered Lumens |
| LHD | LED + Downlight: Nominal 110W, 13480 Delivered Lumens |
Plus Customizations:
Bigger or Smaller: Can be made to most custom lengths, from 12" to 96".
Contact Camman or your local Agent for additional information.
Camman-exclusive LumaLine™ — an integrated suspension cable and power cord in one clean line. No loose cord. No zip ties. Just a sleek, neat drop from ceiling to fixture.
Additional Notes:
Mounting is to a 4 inch octagonal junction box.
