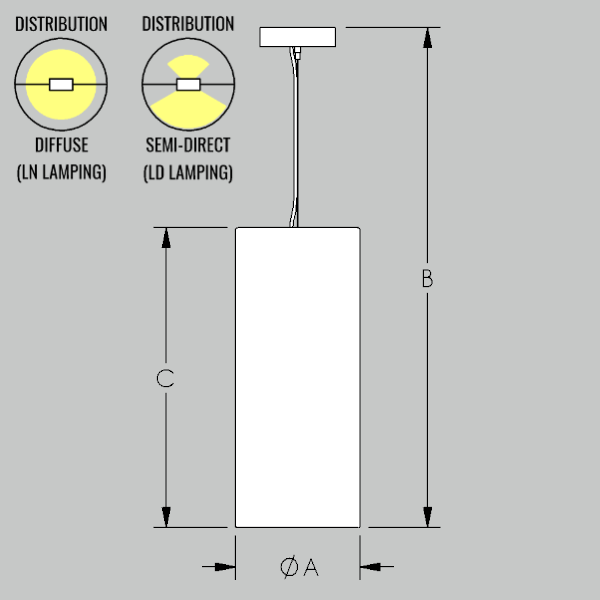

10" A x 72" B x 12" C
Weight: 7 lbs
P4064 | Array 10

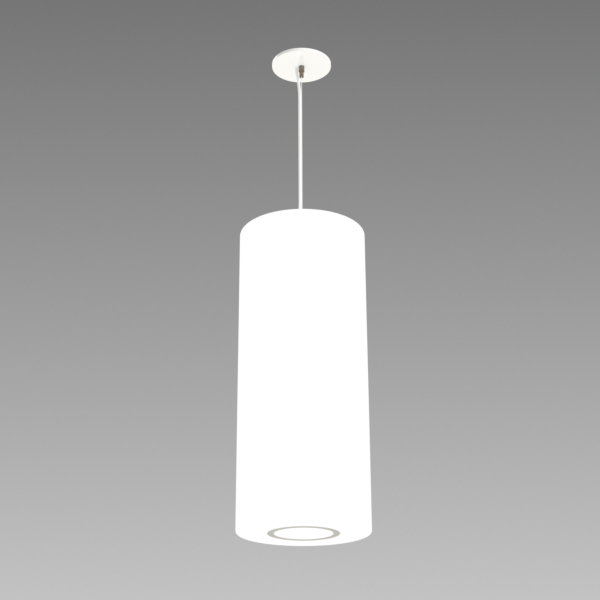

Clean lines and thoughtful details define the Array cylinder pendant, from its Soft Edge diffuser to its exclusive LumaLine™ suspension system. The 10" diameter brings generous scale to open, voluminous spaces — striking alone or as the centerpiece of a mixed Array installation.
- 10 inch diameter white acrylic cylinder
- LumaLine™ integrated suspension cable and power cord — exclusively from Camman
- Soft Edge diffuser
- Balanced Brightness — consistent luminance across all diameters

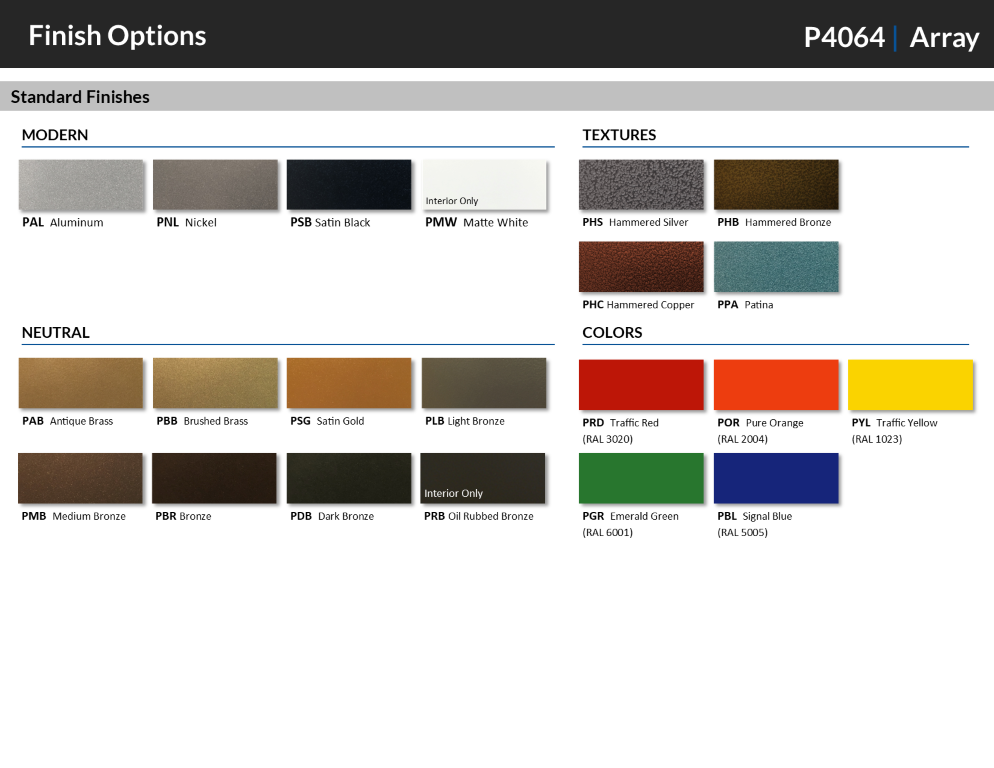

- Distinctive bottom end cap options in multiple styles, finishes, and materials
P4064-12
| LN | LED: Nominal 15W, 1850 Delivered Lumens |
| LND | LED + Downlight: Nominal 40W, 4850 Delivered Lumens |
| LH | LED: Nominal 20W, 2275 Delivered Lumens |
| LHD | LED + Downlight: Nominal 45W, 5275 Delivered Lumens |
P4064-24
10" A x 84" B x 24" C
Weight: 9 lbs
| LN | LED: Nominal 30W, 3700 Delivered Lumens |
| LND | LED + Downlight: Nominal 55W, 6700 Delivered Lumens |
| LH | LED: Nominal 35W, 4550 Delivered Lumens |
| LHD | LED + Downlight: Nominal 60W, 7550 Delivered Lumens |
P4064-36
10" A x 96" B x 36" C
Weight: 12 lbs
| LN | LED: Nominal 45W, 5550 Delivered Lumens |
| LND | LED + Downlight: Nominal 70W, 8550 Delivered Lumens |
| LH | LED: Nominal 55W, 6825 Delivered LumensLED: Nominal 55W, 6825 Delivered Lumens |
| LHD | LED + Downlight: Nominal 80W, 9825 Delivered Lumens |
P4064-48
10" A x 108" B x 48" C
Weight: 14 lbs
| LN | LED: Nominal 60W, 7400 Delivered Lumens |
| LND | LED + Downlight: Nominal 85W, 10400 Delivered Lumens |
| LH | LED: Nominal 70W, 9100 Delivered Lumens |
| LHD | LED + Downlight: Nominal 95W, 12100 Delivered Lumens |
P4064-60
10" A x 120" B x 60" C
Weight: 16 lbs
| LN | LED: Nominal 75W, 9250 Delivered Lumens |
| LND | LED + Downlight: Nominal 95W, 12250 Delivered Lumens |
| LH | LED: Nominal 90W, 11375 Delivered Lumens |
| LHD | LED + Downlight: Nominal 115W, 14375 Delivered Lumens |
P4064-72
10" A x 132" B x 72" C
Weight: 18 lbs
| LN | LED: Nominal 90W, 11100 Delivered Lumens |
| LND | LED + Downlight: Nominal 110W, 14100 Delivered Lumens |
| LH | LED: Nominal 105W, 13650 Delivered Lumens |
| LHD | LED + Downlight: Nominal 130W, 16650 Delivered Lumens |
P4064-96
10" A x 156" B x 96" C
Weight: 24 lbs
| LN | LED: Nominal 115W, 14800 Delivered Lumens |
| LND | LED + Downlight: Nominal 140W, 17800 Delivered Lumens |
| LH | LED: Nominal 140W, 18200 Delivered Lumens |
| LHD | LED + Downlight: Nominal 165W, 21200 Delivered Lumens |
Plus Customizations:
Bigger or Smaller: Can be made to most custom lengths, from 12" to 96".
Contact Camman or your local Agent for additional information.
Camman-exclusive LumaLine™ — an integrated suspension cable and power cord in one clean line. No loose cord. No zip ties. Just a sleek, neat drop from ceiling to fixture.
Additional Notes:
Mounting is to a 4 inch octagonal junction box.
