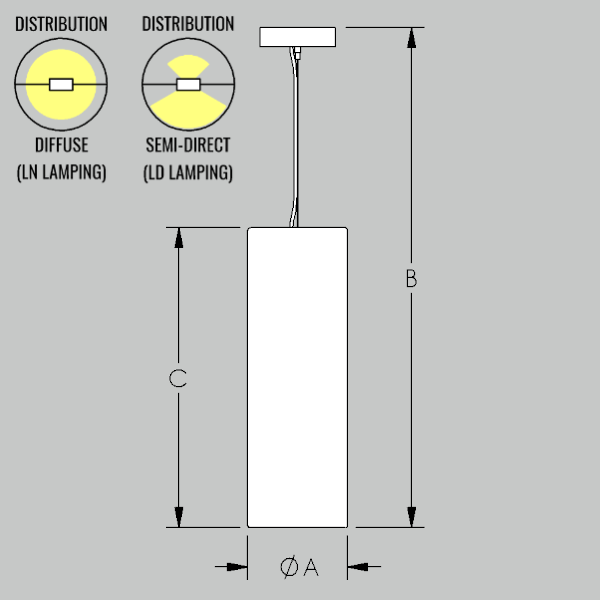

8" A x 72" B x 12" C
Weight: 6 lbs
P4053 | Array 8

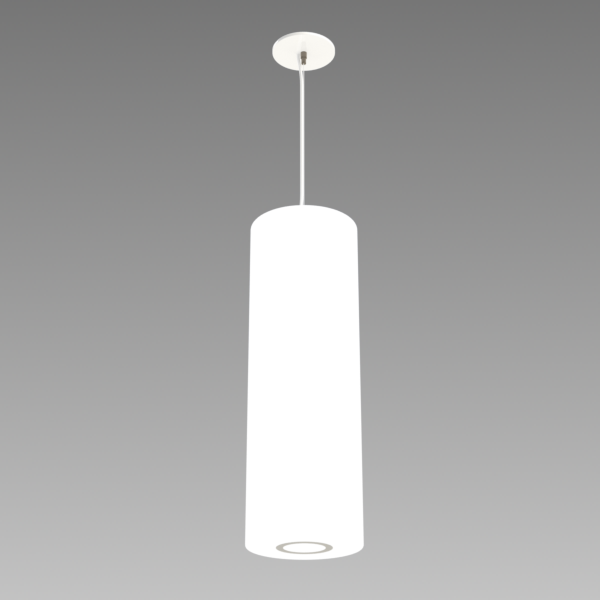

Clean lines and thoughtful details define the Array cylinder pendant, from its Soft Edge diffuser to its exclusive LumaLine™ suspension system. The 8" diameter commands attention in larger spaces, anchoring multi-diameter clusters with presence.
- 8 inch diameter white acrylic cylinder
- LumaLine™ integrated suspension cable and power cord — exclusively from Camman
- Soft Edge diffuser
- Balanced Brightness — consistent luminance across all diameters

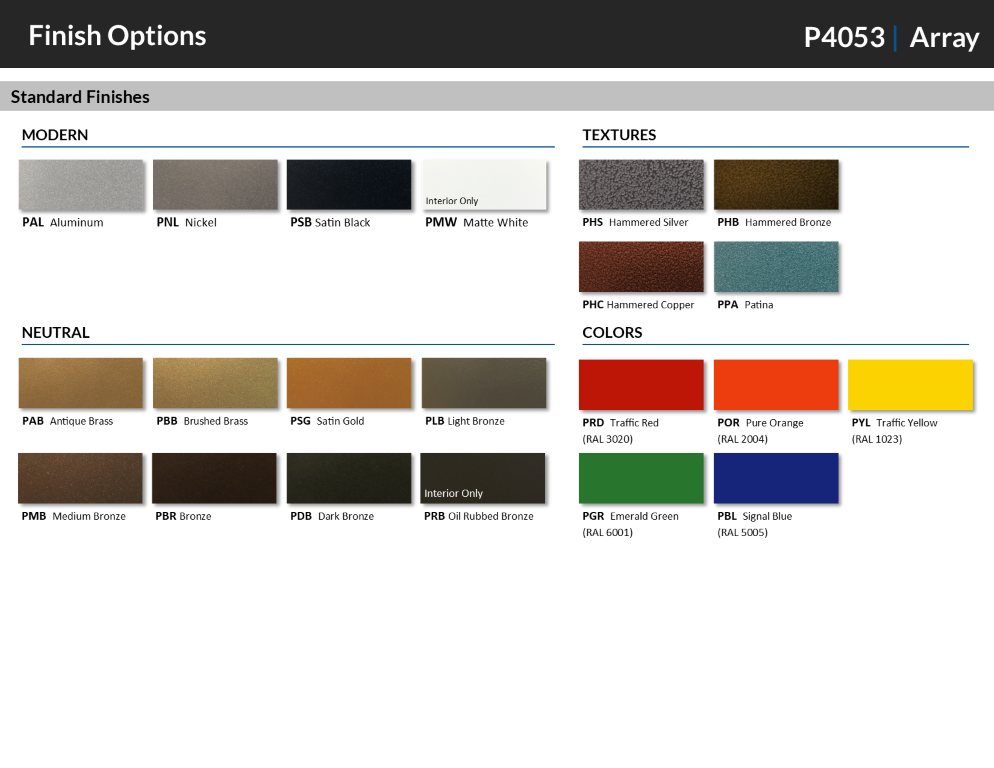

- Distinctive bottom end cap options in multiple styles, finishes, and materials
P4053-12
| LN | LED: Nominal 15W, 1480 Delivered Lumens |
| LND | LED + Downlight: Nominal 35W, 4480 Delivered Lumens |
| LH | LED: Nominal 15W, 1905 Delivered Lumens |
| LHD | LED + Downlight: Nominal 40W, 4905 Delivered Lumens |
P4053-24
8" A x 84" B x 24" C
Weight: 7 lbs
| LN | LED: Nominal 25W, 2960 Delivered Lumens |
| LND | LED + Downlight: Nominal 50W, 5960 Delivered Lumens |
| LH | LED: Nominal 30W, 3810 Delivered Lumens |
| LHD | LED + Downlight: Nominal 55W, 6810 Delivered Lumens |
P4053-36
8" A x 96" B x 36" C
Weight: 9 lbs
| LN | LED: Nominal 35W, 4440 Delivered Lumens |
| LND | LED + Downlight: Nominal 60W, 7440 Delivered Lumens |
| LH | LED: Nominal 45W, 5715 Delivered Lumens |
| LHD | LED + Downlight: Nominal 70W, 8715 Delivered Lumens |
P4053-48
8" A x 108" B x 48" C
Weight: 11 lbs
| LN | LED: Nominal 50W, 5920 Delivered Lumens |
| LND | LED + Downlight: Nominal 70W, 8920 Delivered Lumens |
| LH | LED: Nominal 60W, 7620 Delivered Lumens |
| LHD | LED + Downlight: Nominal 85W, 10620 Delivered Lumens |
P4053-60
8" A x 120" B x 60" C
Weight: 11 lbs
| LN | LED: Nominal 60W, 7400 Delivered Lumens |
| LND | LED + Downlight: Nominal 85W, 10400 Delivered Lumens |
| LH | LED: Nominal 75W, 9525 Delivered Lumens |
| LHD | LED + Downlight: Nominal 100W, 12525 Delivered Lumens |
P4053-72
8" A x 132" B x 72" C
Weight: 12 lbs
| LN | LED: Nominal 70W, 8880 Delivered Lumens |
| LND | LED + Downlight: Nominal 95W, 11880 Delivered Lumens |
| LH | LED: Nominal 90W, 11430 Delivered Lumens |
| LHD | LED + Downlight: Nominal 115W, 14430 Delivered Lumens |
P4053-96
8" A x 156" B x 96" C
Weight: 14 lbs
| LN | LED: Nominal 95W, 11840 Delivered Lumens |
| LND | LED + Downlight: Nominal 120W, 14840 Delivered Lumens |
| LH | LED: Nominal 120W, 15240 Delivered Lumens |
| LHD | LED + Downlight: Nominal 145W, 18240 Delivered Lumens |
Plus Customizations:
Bigger or Smaller: Can be made to most custom lengths, from 12" to 96".
Contact Camman or your local Agent for additional information.
Camman-exclusive LumaLine™ — an integrated suspension cable and power cord in one clean line. No loose cord. No zip ties. Just a sleek, neat drop from ceiling to fixture.
Additional Notes:
Mounting is to a 4 inch octagonal junction box.
