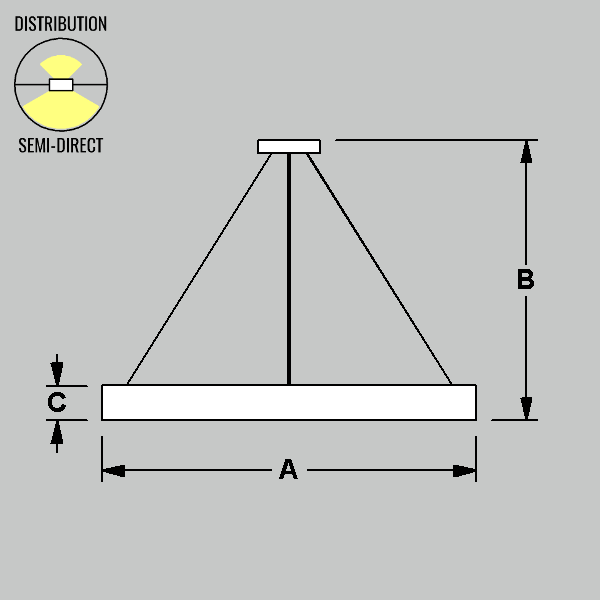

18" A x 18" B x 5" C
Weight: 11 lbs
P1003 | Heinz
The Heinz pendant fixture pairs simple metal side walls with a flat acrylic bottom lens. Its minimalist style is sure to suit many spaces. It is suspended by a single center stem and four aircraft cables. To add depth and texture, opaque overlay options are also offered.
- Metal Side Walls
- Flat White Acrylic Bottom Lens
- Center Stem & (4) Aircraft Cables to 45° Swivel Canopy

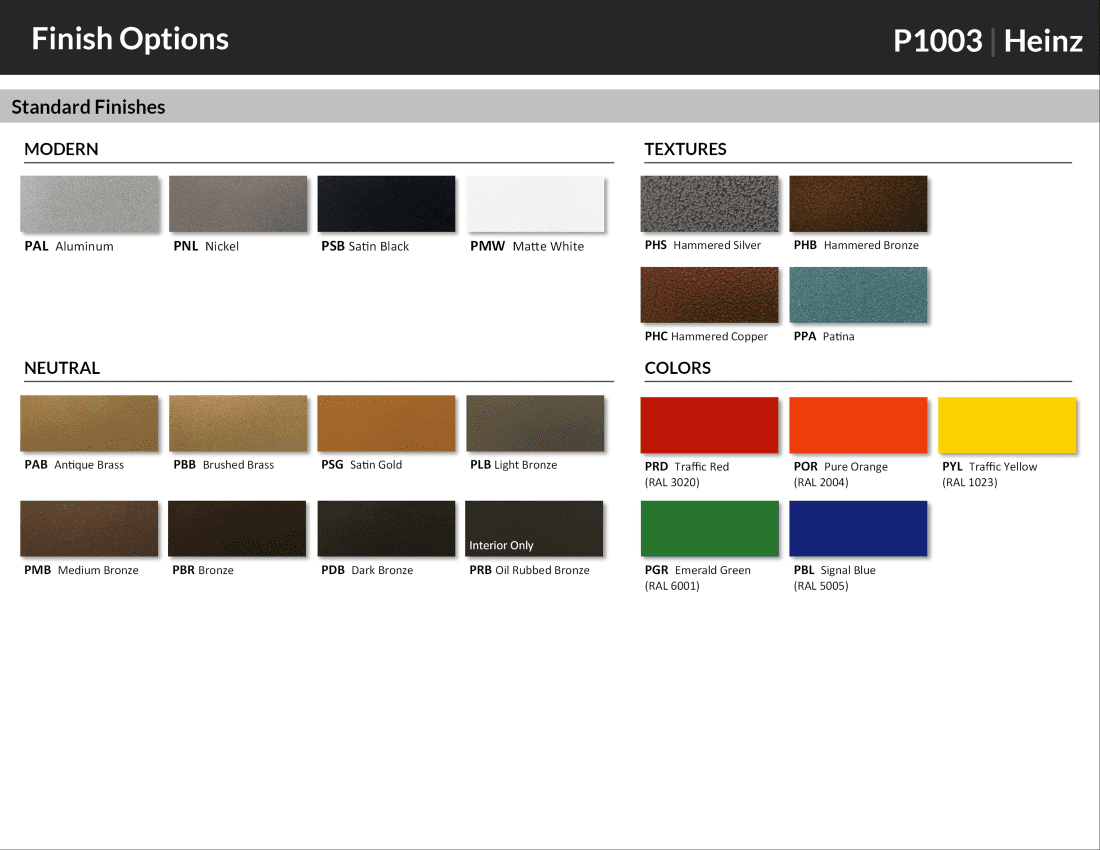

- Overlay Options
- Camman Express Available (All Sizes; Overlays Not Included)
- Additional Sizes Available - Contact the Factory
P1003-18
| LN | LED: Nominal 45W, 3000 Delivered Lumens |
| LH | LED: Nominal 60W, 4000 Delivered Lumens |
P1003-24
24" A x 24" B x 5" C
Weight: 15 lbs
| LN | LED: Nominal 70W, 5450 Delivered Lumens |
| LH | LED: Nominal 95W, 7300 Delivered Lumens |
P1003-36
36" A x 36" B x 5" C
Weight: 31 lbs
| LN | LED: Nominal 175W, 15150 Delivered Lumens |
| LH | LED: Nominal 220W, 18300 Delivered Lumens |
P1003-42
42" A x 42" B x 5" C
Weight: 39 lbs
| LN | LED: Nominal 220W, 19700 Delivered Lumens |
| LH | LED: Nominal 310W, 26250 Delivered Lumens |
P1003-48
48" A x 48" B x 5" C
Weight: 42 lbs
| LN | LED: Nominal 250W, 24350 Delivered Lumens |
| LH | LED: Nominal 390W, 35250 Delivered Lumens |
Plus Customizations:
RGBW: Uplight, downlight or both.Bigger or Smaller: Other sizes available; contact the factory.
Contact Camman or your local Rep for additional information.
Additional Notes:
Mounting is to a 4 inch octagonal junction box.
