Infinilite | Wall

Semi-flush mount, sleek and modern, in straight runs and around corners.

  1. Home
  2. Infinilite
  3. Wall

Overview

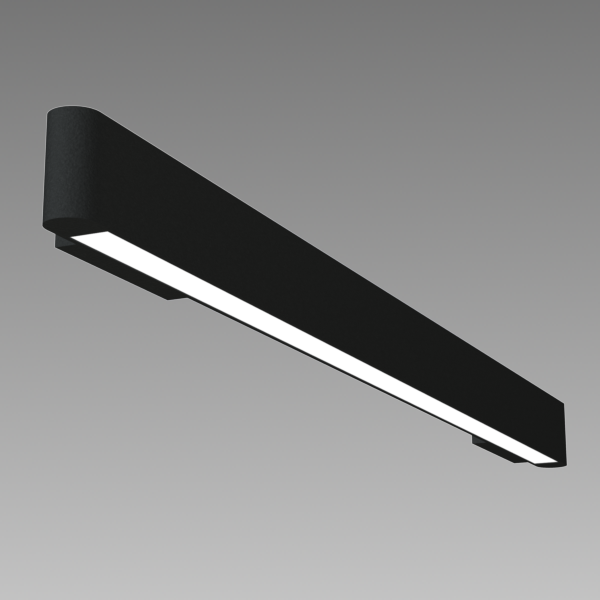

Infinilite Wall features a pleasant, small profile linear body, available in uplight/downlight or downlight-only distributions. Four individual uplight and downlight packages make a wide range of distributions possible.

Infinilite Wall is available as:

  • Standard 2ft, 3ft, 4ft, 6ft and 8ft runs
  • Custom length straight runs

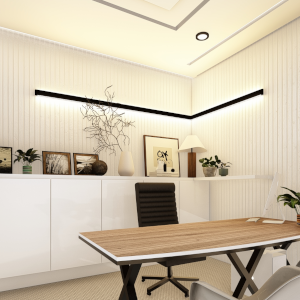

  • Custom 'pattern' runs around inside & outside corners

Technical Specs

Size 1-1/4" Wide x 2-1/2" Tall Profile, 1.813" Projection from Wall
Construction 6061 Aluminum Extrusion, Precision Milled Aluminum Connectors
Power From 3.75 to 7.75 Watts per Foot, Depending on Output
Lamping LED: 90CRI, Outputs Between 400 & 700 Lumens per Foot
CCT 2700K, 3000K, 3500K, 4000K Color Temperature
Distribution Lambertian Direct or Direct/Indirect Lensing
Drivers Integral Drivers, 0-10V Dimming to 1%
Finishes Full Range of Standard Finishes Available
Weight Maximum Weight = 1.2 Pounds per Foot

Downloads

Also Available: Pendant Configurations

Lines

Straight line configurations provide a simple and straightforward design foundation.

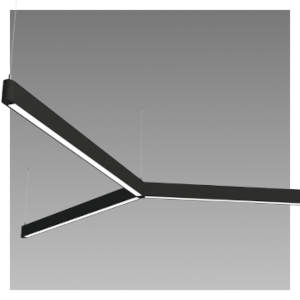

Shapes

Core shape configurations add design flair and flexibility for a wide range of applications.

Patterns

Configurable to meet the most imaginative design requirements.
