Core shape configurations add design flair and flexibility for a wide range of configurations
Infinilite features a pleasant, small profile linear body, available in in uplight/downlight or downlight-only distributions. Four individual uplight and downlight packages make a wide range of distributions possible.

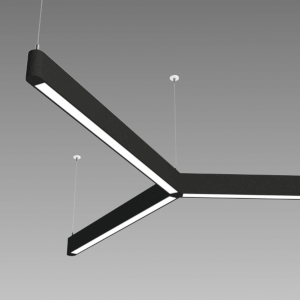

Shape configurations take full advantage of all available connectors. On open shapes, for even more design freedom, substitute our unique swivel connector which can be set to any angle between 90 and 170 degrees.
|Size||1-1/4" Wide x 2-1/2" Tall Profile|
|Construction||6061 Aluminum Extrusion, Precision Milled Aluminum Connectors|
|Power||From 3.75 to 7.75 Watts per Foot, Depending on Output|
|Lamping||LED: 90CRI, Outputs Between 400 & 700 Lumens per Foot|
|CCT||2700K, 3000K, 3500K, 4000K Color Temperature|
|Distribution||Lambertian Direct Lensing, Batwing Indirect Lensing|
|Drivers||Integral Drivers, 0-10V Dimming to 1%|
|Finishes||Full Range of Standard Finishes Available|
|Weight||Maximum Weight = 1.2 Pounds per Foot|

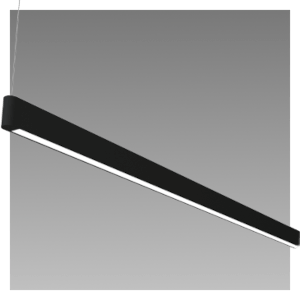

Configurations in straight lines provide a simple and straightforward design foundation.

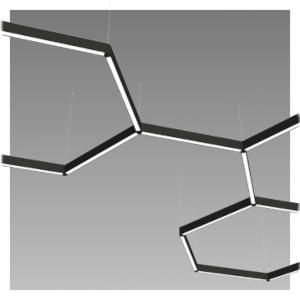

Configurable to meet the most imaginative design requirements.
